V-Ribbed BeltClose

Features

  • The wide width and thin height provide the excellent flexibility
  • High power transmission under operational conditions of high-speed rotation, reverse bending and a small diameter pulley
  • Maintains consistent tension during operation with high tension and low shrinkage cords
  • Excellent in resistance against heat, oil and wear
  • Enhances power transmission efficiency by reducing slip during operation
Features

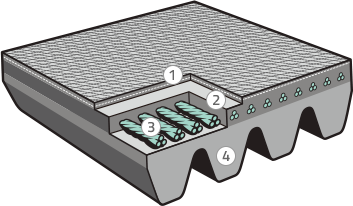

Construction Functions Materials
① Upper fabric Protection for the inner tension member Cotton, Synthetic fabric
② Adhesive rubber Support and protection of tension member adhesion BR, CR, EPDM
③ Tension member Primary material for transferring power Polyester, Nylon
④ Compression rubber Belt shape maintaining and enhancement of side pressure BR, CR, EPDM

BR : Butadiene Rubber / CR : Chloroprene Rubber / EPDM : Ethylene Propylene Diene Monomer

Measure of section

Measure of section
Pitch(㎜) Height(㎜)
J Type 2.34 3.70
L Type 4.70 9.65
M Type 9.40 13.0
H Type 1.60 3.00
