Isolation System DRB provides a 100% domestically developed technology in the form of combined solutions for
earthquakes, including development, production, construction, structural optimization etc.
An earthquake resistance · A vibration control · A seismic Isolation
내진 이미지 내진 이미지

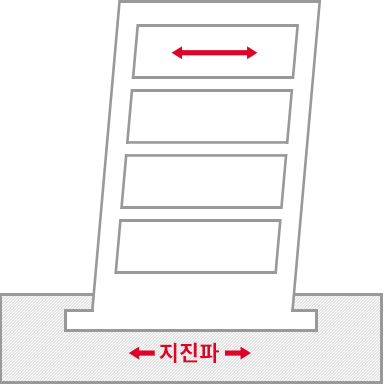

Earthquake Resistance
The concept of resisting earthquakes by reinforcing the structure itself.
제진 이미지 제진 이미지

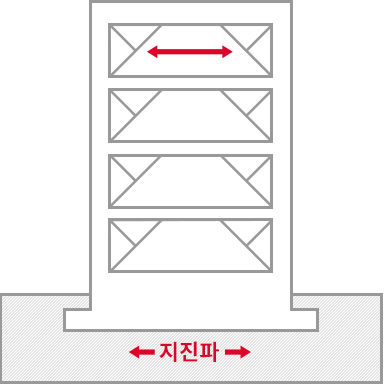

Vibration Control
The concept of controlling earthquakes by installing damping systems.
면진 이미지 면진 이미지

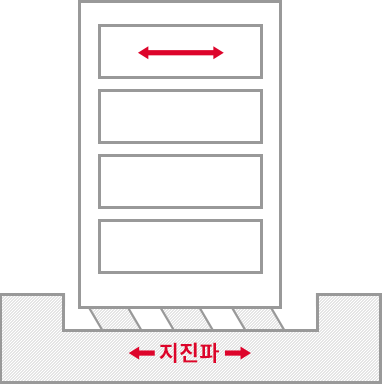

Seismic Isolation
The concept of obstructing earthquakes by isolating between structure and foundation.

Isolation System

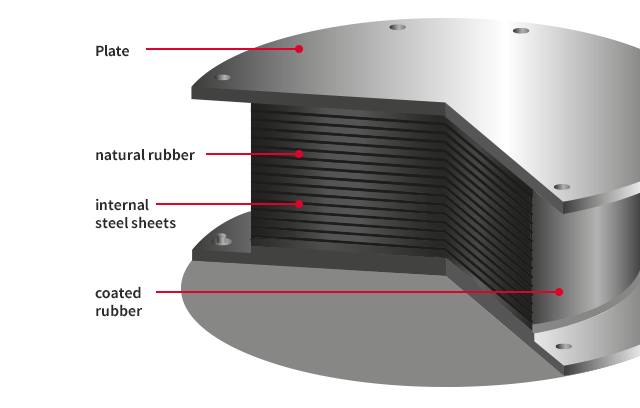

Natural Rubber Bearing(NRB)

Crafted from natural rubber, the laminated rubber exhibits outstanding restoring force

Features

  • Low attenuation, with an equivalent attenuation constant of 2-3%
  • Excellent linearity and stable restoring force
  • High design flexibility for various damper types and attenuation adjustments
  • Minimal dependency on changes in axial force and displacement history
  • Maintains stable rigidity despite large deformation22

Isolation System

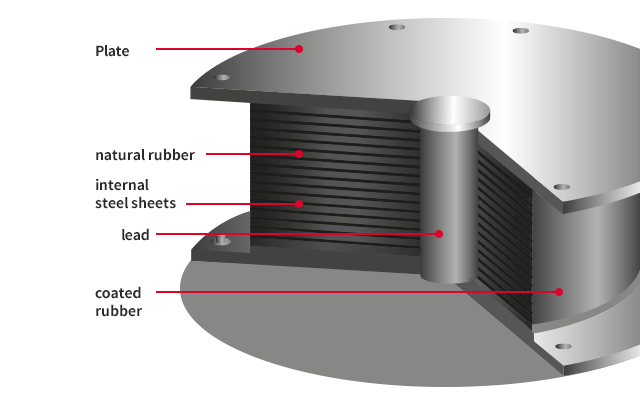

Lead Rubber Bearing(LRB)

As it uses lead plugs with high attenuation, it possesses both attenuation and restoring force at the same time.

Features

  • It uses lead plugs with high attenuation
  • The natural laminated rubber fuctions as a spring, and the lead functions as a damper.
  • It is easy to install without a separate damper.
  • It is possible to adjust damping amount by controlling the number and size of lead.

Isolation System

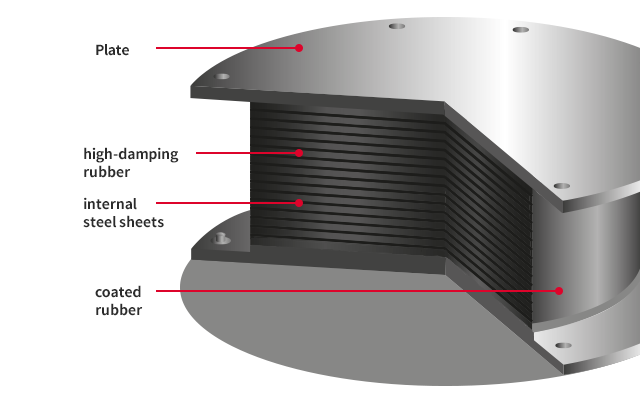

High Damping Rubber Bearing(HDRB)

As it is laminated rubber made of specially mixed high damping rubber, the rubber itself has damping capacity.

Features

  • It is laminated rubber with high damping rubber
  • Rubber materials play the functions of both springs and damping materials themselves.
  • It is easy to install without a separate damper.
  • Its hysteresis curve remains relatively smooth.

Application Performance
  • Seosan Jugong Apartment Resident Community Welfare Center
  • Samsung-dong La Terrace
  • Mok-dong KT IDC
  • Busan University Earthquake Simulation Test Building
  • Busan LG CNS Date Center
  • BNK Date Center
  • Dong-il Highbill Apartment
  • NH Integrated IT Center
  • 대신증권전산센터
Engineering Business Team : TEL. 02 2168 9130
